16 English Windows Support input 3840 * 2160 @ 60Hz;

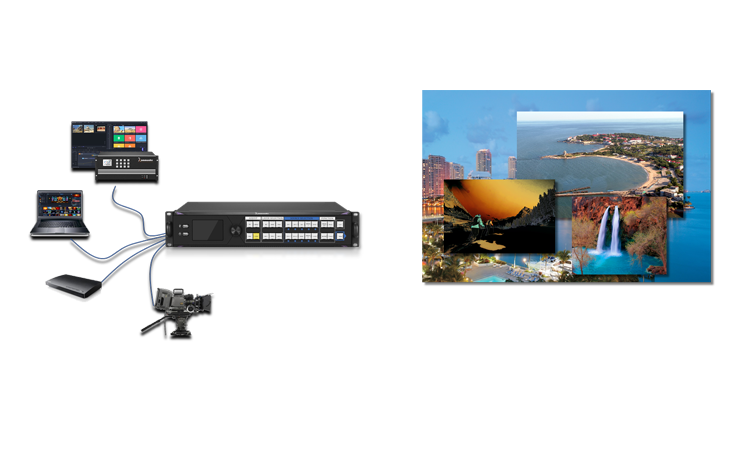

Supports four simultaneous 4k * 2k inputs;

Optional Windows-minimized and roaming; Largest connection Resolution 30720 * 640 @ 60Hz 、 9216 * 2304 @ 60Hz 6144 * 3072 @ 60Hz 4096 * 3840 @ 60Hz 21.0 million pixels can customize the resolution; EDID custom inputs; Image rotation and mirror functions;

Supports time and key conversion; 10 saved modes and 8 hotkey calls; Frozen and black functions; Support for SDI or USB input (optional)

Audio decoder output synchronization; Supports WIFI Control RS232 control; Support 16 card sending standard can install 8 cards standard sending application functions primary core cores connector powerful hardware 4k image quality @ 60hz Better support Input 4k * 2k input input

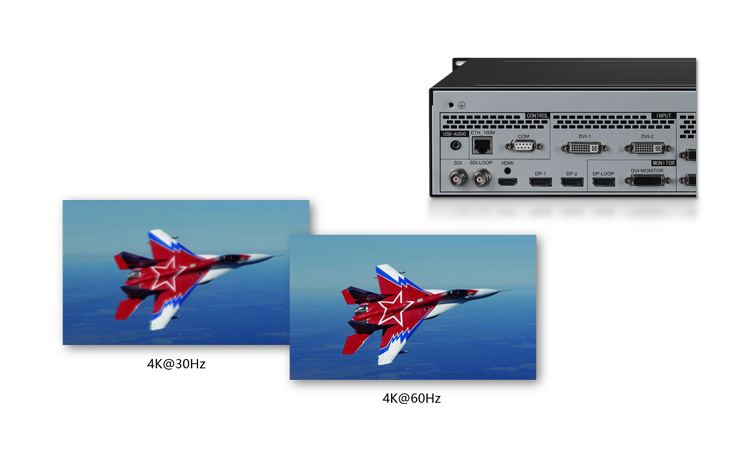

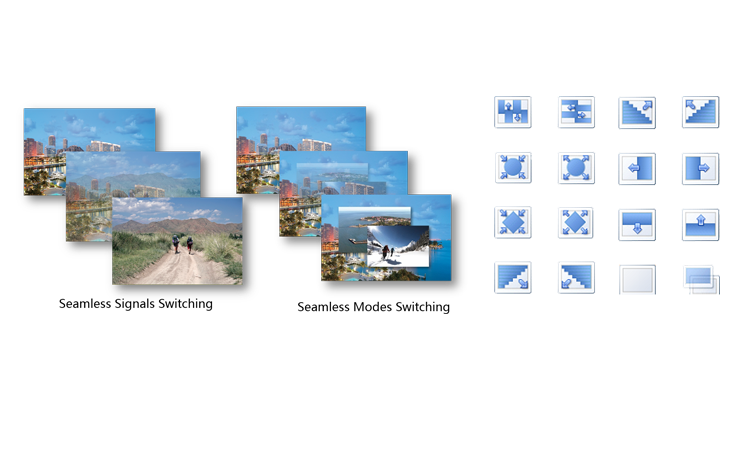

Ultra high resolution 4k image rotation function and normal input mirror 90 ° 180 ° mirror Horizontal 270 ° Mirror 4 layer Windows arbitrary extension and Roaming

LED screen display data and provide machine person layer Style: Class mode, a total of 8 samples. The layer setting activates the layer on/off and the other parameter.

Mirror: Layer mirror function.

The Setup Wizard: the Setup Wizard button.

 BRI: Brightness Current layer

LOCK: Main panellock button.

Input signal source First open the layer switch, then select the layer to control and select the corresponding source input signal: Gang AV 、 DP1 DP2 、 HDMI1 、 HDMI2 VGA DVI SDI/USB

BLACK/FREEZE: black screen or image freeze, which can be set in the menu. Button extension EXT. A B C D: Select the class to be operated Operation Menu

OK: Confirm button ESC: Toggle Operation Key,The Turn button: Adjust the menu parameters 0-9: Hotkey for Call mode, press the button, the corresponding mode can be called, it is also a parameter key number.

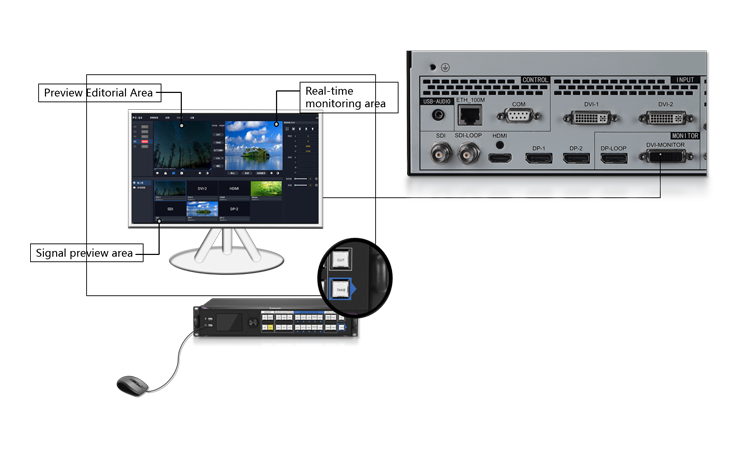

Save: Mode save mode: Revoke mode. Input signal input signal source input is network 1 DVI 2 HDMI 2 DP 1 VGA 1 AV 1 SDI/1 USB (expandable) antenna Wi-Fi audio output: 3.5 audio interface, left support and right audio channel output. Power connector Fuse Generator

power switch GND send card slot support 16 standard sending cards can install 8 send cards

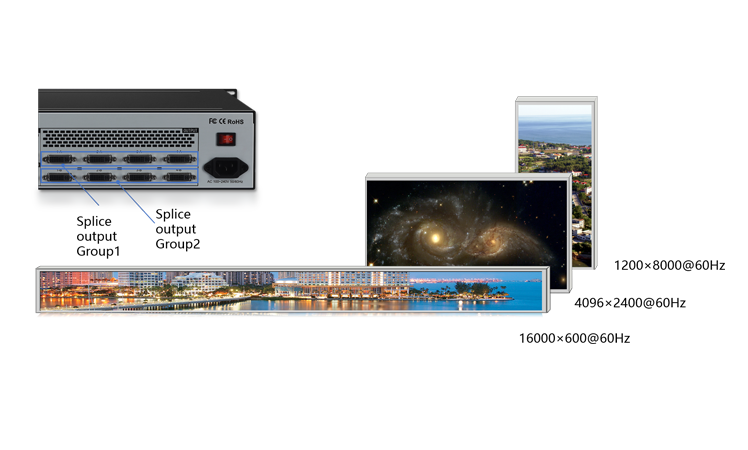

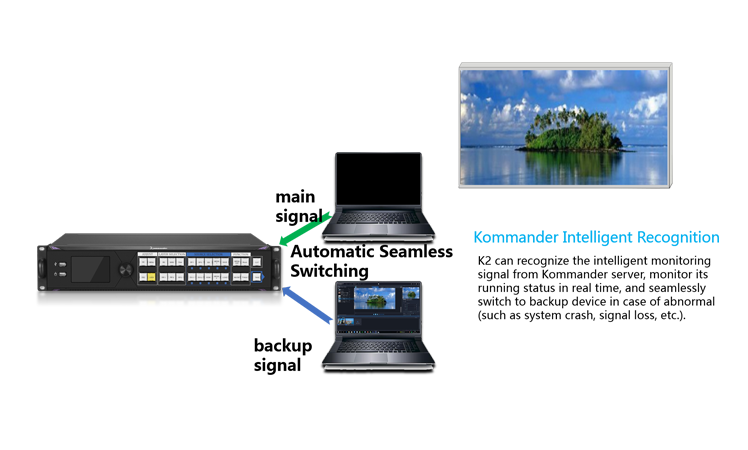

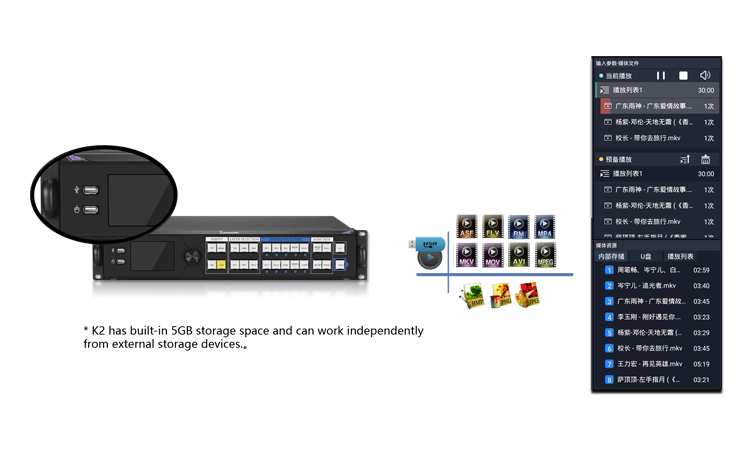

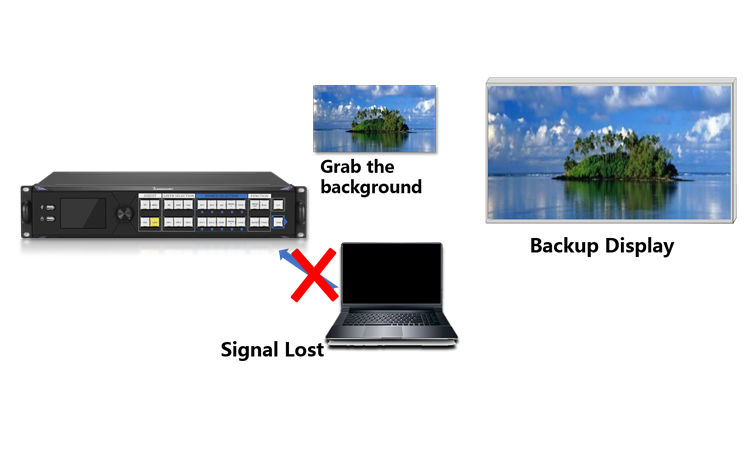

Standard communication port control computer and USB Connector output 8 Channel 1 output: (DVI1-1, DVI1-2, DVI1-3, DVI1-4). 2 Output (DVI2-1, DVI2-2, DVI2-3, DVI2-4). Each channel has 2 DVI-I connections.

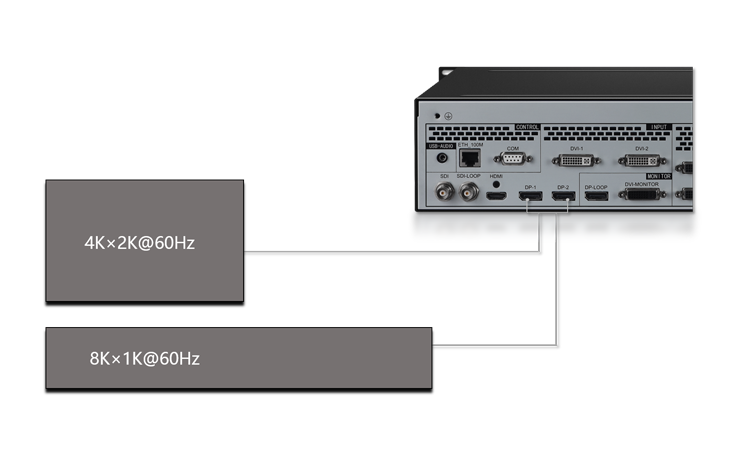

 Application DP Input Quantity: 2 DP connectors Standard DVI 1.2 signal resolution Support VESA, 3840 * 2160 @ 60hz,

Customized edid HDMI Input Quantity: 2 HDMI signal standard HDMI 1.4 supported resolution VESA, 3840 * 2160 @ 30hz, 2560 * 1600 @ 30hz,

EDID customized DVI Input Quantity: 1 DVI-I Connector Standard DVI 1.0, HDMI 1.3 Supported resolution VESA, 1920 * 1200 @ 60hz,

EDID custom VGA input quantity: 1 VGA connector-DB15 standard signal R 、 G B 、 hsync 、 vsync: 0 to1Vpp ± 3db (Video 0, 7v + 0, 3v) Black level 75 ohm: 300mv sync tip: 0v VESA supported resolution, PC to 1920x1200

 AV input (cvbs quantity : 1 standard BNC connector PAL/NTSC 1Vpp ± 3db (Video 0, 7V + 0, 3v) 75 ohm resolution is supported 480i, 576i to input

3G-SDI (option number 1 extension) standard BNC connector SD-SDI, HD-SDI 3G-SDI resolution supported 1080p 60/50/30/25/24/25 (PsF)/24 (PsF) 720p 60/50/25/24 1080i 1035i 625/525

 DVI output Line quantity 8 channels-16 DVI DVI-I Connectors Standard Specification DVI 1.0 signal Resolution supported 1024 × 768 @ 60Hz 1600 × 1200 @ 60Hz 1920 × 1080 @ 60Hz 1920 × 1280 @ 60Hz Custom Resolution 1536 × 1536 @ 60Hz 2048 × 1152 @ 60Hz 3840 × 640 @ 60Hz 2304 × 1152 @ 60Hz output single : 2.65M@60Hz 2560 × 960 @ 60hz 8 Channel: 21.0M@60Hz

The whole machine weight machines packing weight 10, 0kg 15.5 kg size (mm size machine (including interface): 360mm L x 440m W x 88.1mm H

Packing size: 510mm l x 530m W x 138mm H

power supply 100v-240v AC 50/60hz

Maximum capacity 150w temperature 0 °c 45 °c moisture storage 10%- 90%

 Sending Box: AMS-ltb200 led post card box SC-led external Send card power box insert 4 pcs in control system Sync key feature-can insert 4 send card to satisfy the requirment, supports most video wall control system such as LINSN Mooncell and Dbstar. -Bulit in the famous Taiwanese brand electric Meanwell with power 7A, Power 35 W, 5 V.-Atmospheric appearance, fashionable design, thickening of the Earth's crust.
