ES4

Features：

Four network ports 2.6 million loaded

Stereo audio input

Ambient brightness sensor

Data readback repair

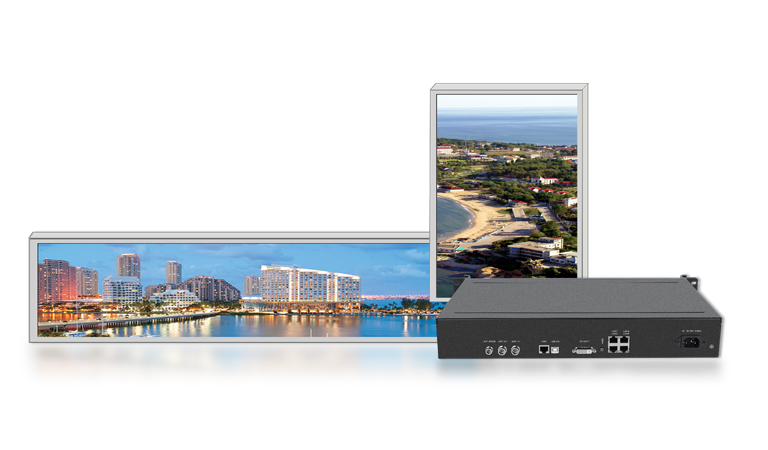

Four network ports 2.6 million loaded

•ES4 supports four network port output, a single machine can complete the 2.6 million pixel display screen loading, the widest 4000 pixels, the highest 2000 pixels.

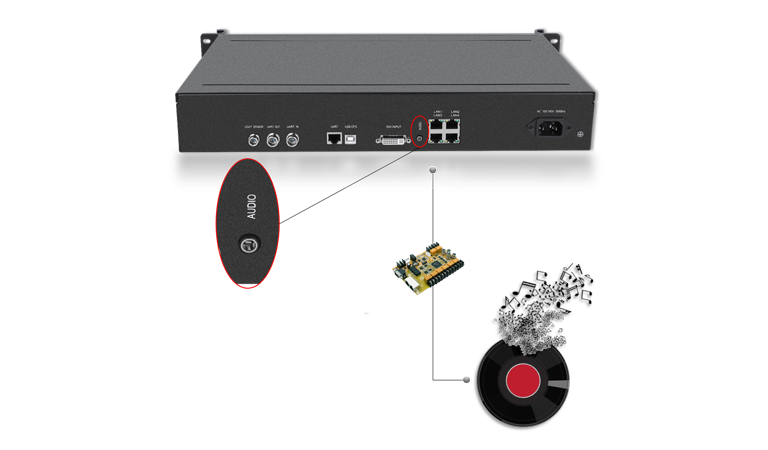

Stereo audio input

ES4 supports one stereo audio input, and can be used with the multi-function card MF630 to achieve audio transmission.

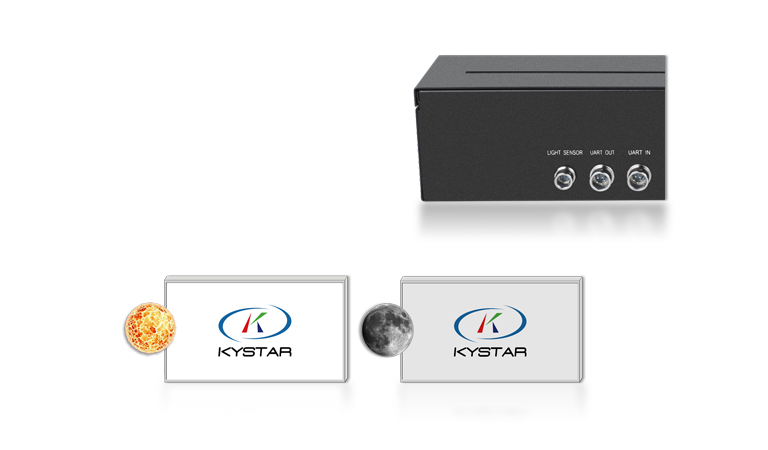

Ambient brightness sensor

•ES4 supports brightness sensor data input, so that the screen can automatically adjust the display brightness according to the brightness of the environment.

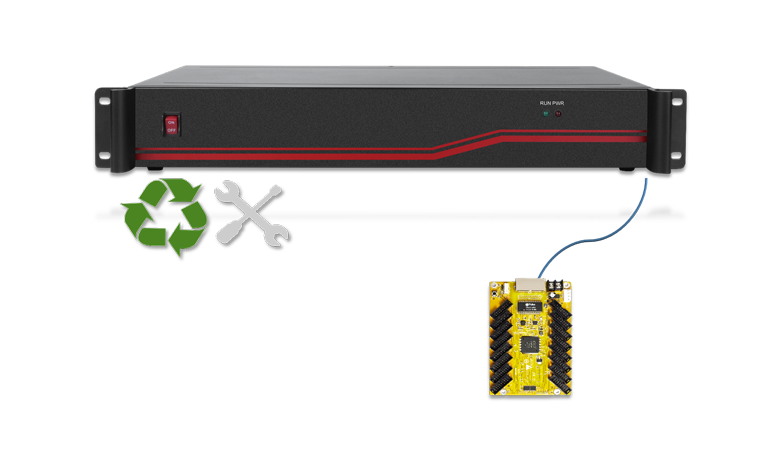

Data readback repair

•ES4 supports data readback and repair functions.

•Using the readback configuration function, users can quickly read the correct configuration parameters from the receiving card when replacing the sending card, without having to reconfigure the parameters.

•Using the configuration retransmission function, when the user replaces the receiving card, this function can help retransmit the configuration stored in the device to complete the system repair without reconfiguring the parameters.

输入接口：DVI X 1、AUDIO X 1

输出接口：千兆网口 X 4

控制端口：USB-CFG X 1

光探头接口 X 1

级联口 X 2

带载点数：260万

最大宽度：4000

最大高度：2000
