Year of production: 2020
Supports full-color, dual-color and single color LED display
(Supports full color LED screen, two color & 1 color)
MAX supports 2048 * 640 pixels
Control Multi-Displays, realizing displays
Combination, synchronous display, and independent play

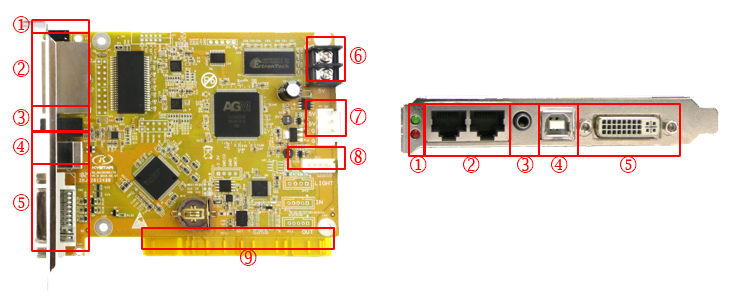

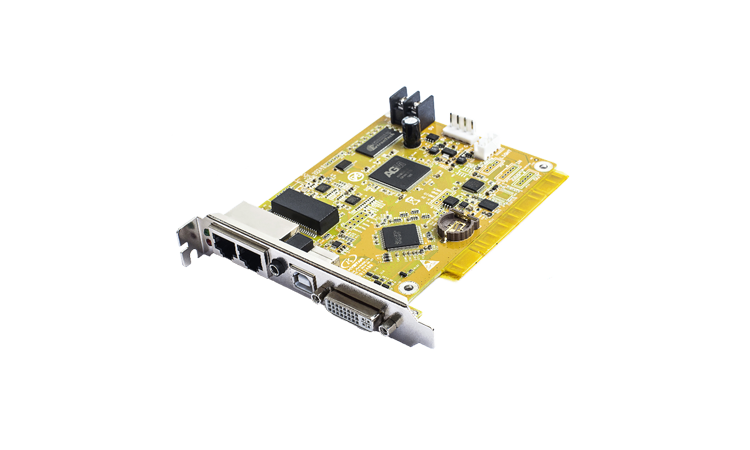

Panel description
|
|
|
||
|
|
|
||
|
Serial number |
Function description |
|
|
|
j |
Signal running State Indicator |
|
|
|
k |
Two Gigabit ports, lan1 and lan2 ports |
|
|
|
l |
Audio Input Interface |
|
|
|
m |
USB control terminal for PC upper computer control sending card |
|
|
|
n |
DVI Input interface |
|
|
|
o |
JP1, 5V direct plug terminal, providing 5V voltage |
|
|
|
p |
JP2, 4P straight needle white seat, providing 5V voltage |
|
|
|
q |
J11, small 4P interface, providing 5V voltage |
|
|
|
r |
PCI slot, providing 5V voltage |
|
|
Port specification
|
Input port |
||
|
type |
Number |
Specifications |
|
DVI |
1 |
DVI-D input, support custom input resolution signal |
|
Audio |
1 |
3.5mm Audio Input Interface |
|

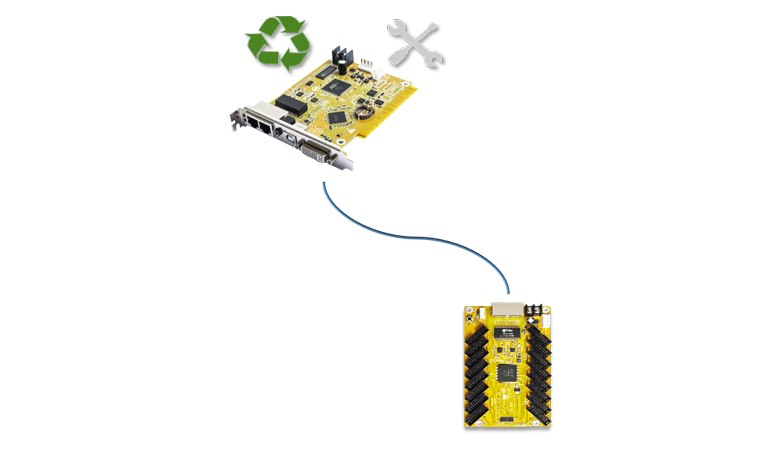

Output port |
||
|
type |
Number |
Specifications |
|
LAN |
2 |
Gigabit Network Output Port, Receiving Card |
|
Control port |
||
|
type |
Number |
Specifications |
|
USB（type-B） |
1 |
USB control port can control sending card with PC software |
|
J3 Big 4P Power Supply Interface Definition |
||||
|
Pin |
1 |
2 |
3 |
4 |
|
Definition |
VCC |
GND |
GND |
NC |
|
J13 Small 4P Power Supply Interface Definition |
||||
|
pin |
1 |
2 |
3 |
4 |
|
Definition |
VCC |
VCC |
GND |
GND |
